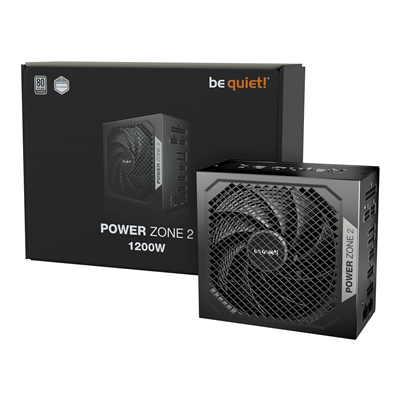

The be quiet! Power Zone 2 1200W (MPN: BP030EU) is a high-performance, fully modular power supply engineered for enthusiast gaming PCs and professional workstations. Designed to meet the latest ATX 3.1 standard, it delivers PCIe 5.1 compatibility with native 12V-2×6 connectors for next-generation GPUs. With 80 PLUS Platinum efficiency and semi-passive cooling, it provides exceptional power stability, efficiency, and near-silent operation, backed by a 10-year manufacturer’s warranty.

Key Features

Continuous / Peak Power: 1200W continuous / up to ~1270W peak

Efficiency: 80 PLUS Platinum

Compliance: ATX 3.1, EPS 12V v2.92

PCIe Support: 2 x native 12V-2×6 PCIe 5.1 connectors plus 3 x 6+2-pin PCIe connectors

Rail Design: Single high-capacity 12V rail for stable handling of transient power spikes

Cooling: 140mm Pure Wings 3 fan with semi-passive zero-RPM mode at low load

Topology: Advanced LLC + SR + DC/DC topology with digital control

Modularity: Fully modular flat and sleeved cables for optimal airflow and clean builds

Warranty: 10-year manufacturer’s warranty; MTBF >100,000 hours

Full Technical Specification

Model / MPN:

Power Zone 2 1200W (BP030EU)

Form Factor:

ATX 3.1 (EPS 12V v2.92)

Power Output:

1200W continuous / ~1270W peak

Efficiency Rating:

80 PLUS Platinum

Input Voltage:

100–240VAC

Input Frequency:

50–60Hz

Input Current:

~15A @ 230VAC, ~7.5A @ 115VAC

Power Factor:

0.97 at full load (active PFC)

Modern Standby:

Supported; low standby power consumption

Operating Temperature:

Up to 40°C

MTBF:

100,000 hours at 25°C

Rail Operation:

Single 12V rail rated at approximately 100A+

Additional Rails:

+3.3V and +5V auxiliary rails; -12V and +5VSB supported

Hold-up Time:

Compliant with ATX 3.1 specifications

Protections:

OCP, OVP, UVP, OPP, OTP, SCP, surge and inrush protection

Fan:

140mm Pure Wings 3 fan with semi-passive zero-RPM operation

Noise Levels:

Extremely quiet at low to medium loads; increases gradually under sustained full load

Modularity:

Fully modular cable system using flat and sleeved cables

Cable Length:

Up to ~100cm maximum cable length

Connectors:

1 x 20+4-pin ATX

1 x 8-pin CPU (P8 / EPS)

1 x 4+4-pin CPU (P4+4 / EPS)

2 x 12V-2×6 PCIe 5.1

3 x 6+2-pin PCIe

7 x SATA power

1 x PATA (legacy)

Dimensions:

~160 x 150 x 86mm (W x D x H)

Warranty:

10-year limited manufacturer’s warranty
