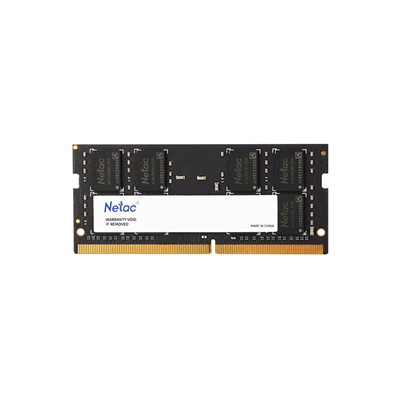

Netac 16GB No Heatsink (1 x 16GB) DDR4 3200MHz SODIMM System Memory

Netac Unbuffered Small Outline DDR4 SDRAM DIMMs (Unbuffered Small Outline Double Data Rate Synchronous DRAM Dual In-Line Memory Modules) are low power, high-speed operation memory modules that use DDR4 SDRAM devices.

Each 260-pin DIMM uses gold contact fingers. The SDRAM Unbuffered SODIMM is intended for use as main memory when installed in systems such as mobile personal computers.

Features

– Power Supply: VDD=1.2V (1.14V to 1.26V)

– VDDQ = 1.2V (1.14V to 1.26V)

– VPP – 2.5V (2.375V to 2.75V)

– VDDSPD=2.25V to 3.6V

– Nominal and dynamic on-die termination (ODT) for data, strobe, and mask signals

– Low-power auto self refresh (LPASR)

– Data bus inversion (DBI) for data bus

– On-die VREFDQ generation and calibration

– On-board I2C serial presence-detect (SPD) EEPROM

– Fixed burst chop (BC) of 4 and burst length (BL) of 8 via the mode register set (MRS)

– Selectable BC4 or BL8 on-the-fly (OTF)

– Databus write cyclic redundancy check (CRC)

– Temperature controlled refresh (TCR)

– Command/Address (CA) parity

– Per DRAM Addressability is supported

– 8 bit pre-fetch

– Fly-by topology

– Command/Address latency (CAL)

– Terminated control command and address bus

– PCB: Height 1.18″ (30.00mm)

– Gold edge contacts

– RoHS Compliant and Halogen-Free

Memory Capacity

16GB (1 x 16GB)

Memory Type

DDR4

Module Type

SODIMM

Memory Speed

DDR4-3200MHz

Pin Configuration

260-pin

Registered/Unbuffered

Unbuffered

Error Correction

Non-ECC

CL-tRCD-tRP-tRAS

22-22-22-52

Heat Sink

/

Working Voltage

1.2v
