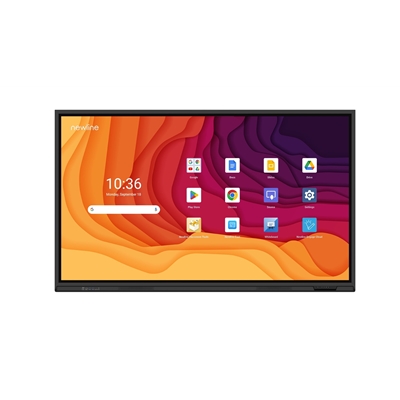

Newline Lyra Pro 86″ Touch Screen

SECURE EDLA INNOVATION

Discover Lyra Pro, our our dependable enterprise solution. Google EDLA certified, it seamlessly integrates with Google Apps, featuring high-precision zero bonding for unparalleled writing. The display delivers crystal-clear 4K images with sound. Modular upgrades ensure adaptability, while the secure Android 14 platform prioritizes safety. Lyra Pro enhances efficiency and productivity, offering a reliable solution for today’s needs.

MODULAR SYSTEM

Elevate your experience with our universe of solutions. Customise your display with Newlines’ accessories. Mix and match to create the perfect fit.

NEWLINE INTERACTIVE ECOSYSTEM

The Newline Interactive Ecosystem enhances operations with integrated tools seamlessly across software and devices, meeting business needs and optimizing workflow.

Specifications

MODEL

LYRA Pro 86″ TT-8623QA

PANEL

Backlight Direct LED (Wide Color Gamut +

Anti Blue Light)

Glass Surface Anti-Glare + Anti-Fingerprint

+ Antimicrobial Tempered Glass

Bonding Technlogy Certified Zero Bonding

Display Area

86″: 1895 x 1066 mm

Display Ratio 16:9

Resolution 3840 x 2160 (4K)

Colours 1,07 Billion

Brightness

86″: 450 cd/m²

Contrast Ratio 5000:1

Response Time 5 ms

Viewing Angle 178 degrees

Display Life Time = 50 000 hours

Transparency > 88%

Haze 2 % ~ 5 %

Touch Surface Hardness 7 H

POWER CONSUMPTION

Standard mode*

86″: 126 W

Standby mode* <0,5 W

TOUCH

Touch Technology Stellar Touch Technology

Touch Points 50 Windows

20 Android/MAC/Linux

Touch Screen Writing Tools Passive pen, Finger, Fist

Number of stylus 2

Accuracy ±1 mm

Real Palm Rejection – Yes

SPEAKER

Speaker Position Front Facing

Speaker Rated Impedance 6 O

Speaker Max.Power Output 20 W x 2

FRONT I/O

USB Type-C (Powered 65 W) 1

HDMI IN 2.1 with HDCP 2.2 1

USB Type-B (Touch) 1

USB 3.2 Type-A 2

Microphone In 1

REAR I/O

HDMI IN 2.1 with HDCP 2.2

(4k @60 Hz) 2

DisplayPort 1.2 1

USB Type-B 3.2 (Touch) 3

USB Type-C (Powered 15 W) 1

USB Type-A 3.2 2

USB 3.2 Type-A to Android 1

HDMI OUT 2.0 (4k @60 Hz) 1

RS232 1

RJ45 (Gigabit) In x 1 / Out x 1

OPS Slot 1

SDM-S Slot 1

SPDIF 1

Audio Line Out (Jack 3,5 mm) 1

Power Out Connect (180 W) 1

SMART SYSTEM

SoC Chipset

GPU

Amlogic A311D2 octa-core

processor 4 x Cortex-A73 at 2,2

GHz, 4 x Cortex-A53 at 2,0 GHz

Arm Mali-G52

RAM 8 GB DDR4

Total Storage 128 GB (Expandable)

Operating System Android 14 Certified

Google EDLA – Yes

Formats Support For Image JPG, JPEG, BMP, PNG

Formats Support For Video

MPEG1, MPEG2, MPEG4,

SorensonH.263, H.263, H.264,

MVC, AVS, AVS+, WMV3, VC1,

Motion JPEG, VP8, VP9, RV30/

RV40

Formats Support For Audio

MPEG1/2ER1; @LAYER2;

@LAYER3, EAC3, ACC-LC, HEAAC,

VORBIS, LPCM, IMA-ADPCM,

MS-ADPCM, G711 A/MU-LAW,

LBR (COOK), FLAC

Camera Slot 1

Wi-Fi 6 + Bluetooth 5.2 Module Integrated (Replaceable)

EXTRA FIRMWARE FEATURES

Multiuser profile – Yes

Embedded Google Apps – Yes

DIMENSIONS / WEIGHT

Outline Dimensions*

(Excl. wall mount)

86″: 1982 x 1191 x 119 mm

Net Weight

86″: 65 Kg

VESA*

86″: 800 x 400 mm
